1. MetalLB: 오픈소스형 로드밸런서

1) 설치

[root@DESKTOP-ARLDN2P ~ (ubun01:nginx)]# helm repo add metallb https://metallb.github.io/metallb
[root@DESKTOP-ARLDN2P ~ (ubun01:nginx)]# helm repo list
NAME    URL
bitnami https://charts.bitnami.com/bitnami
metallb https://metallb.github.io/metallb
[root@DESKTOP-ARLDN2P ~ (ubun01:nginx)]# helm pull metallb/metallb --version 0.13.7
[root@DESKTOP-ARLDN2P ~ (ubun01:nginx)]# tar xvfz metallb-0.13.7.tgz

2) 설치

 [root@DESKTOP-ARLDN2P metallb (ubun01:metallb)]# helm install metallb -f values.yaml .
NAME: metallb
LAST DEPLOYED: Sat Feb  1 18:58:40 2025
NAMESPACE: metallb
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
MetalLB is now running in the cluster.

Now you can configure it via its CRs. Please refer to the metallb official docs
on how to use the CRs.
[root@DESKTOP-ARLDN2P metallb (ubun01:metallb)]# helm list
NAME    NAMESPACE       REVISION        UPDATED                                 STATUS          CHART          APP VERSION
metallb metallb         1               2025-02-01 18:58:40.928374772 +0900 KST deployed        metallb-0.13.7 v0.13.7
[root@DESKTOP-ARLDN2P metallb (ubun01:metallb)]# k get svc,pod,deployments.apps,cm
NAME                              TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
service/metallb-webhook-service   ClusterIP   10.233.4.1   <none>        443/TCP   50s

NAME                                      READY   STATUS    RESTARTS   AGE
pod/metallb-controller-7495dc76b4-fkdk8   1/1     Running   0          50s
pod/metallb-speaker-dv7km                 1/1     Running   0          50s
pod/metallb-speaker-gk2sp                 1/1     Running   0          50s
pod/metallb-speaker-lkpr6                 1/1     Running   0          50s

NAME                                 READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/metallb-controller   1/1     1            1           50s

NAME                         DATA   AGE
configmap/kube-root-ca.crt   1      9m17s

2. vote application 설치

- 해당 어플리케이션은 간단한 투표 어플리케이션으로 해당 app을 로드밸런서와 연동할 것이다.

[root@DESKTOP-ARLDN2P metallb (ubun01:metallb)]# cd ..
[root@DESKTOP-ARLDN2P ~ (ubun01:metallb)]# git clone https://github.com/dockersamples/example-voting-app.git
Cloning into 'example-voting-app'...
remote: Enumerating objects: 1179, done.
remote: Total 1179 (delta 0), reused 0 (delta 0), pack-reused 1179 (from 1)
Receiving objects: 100% (1179/1179), 1.21 MiB | 21.67 MiB/s, done.
Resolving deltas: 100% (448/448), done.
[root@DESKTOP-ARLDN2P ~ (ubun01:metallb)]# cd example-voting-app/

- 어플리케이션이 설치될 네임스페이스 설정

[root@DESKTOP-ARLDN2P example-voting-app (ubun01:metallb)]# k create ns  vote
namespace/vote created
[root@DESKTOP-ARLDN2P example-voting-app (ubun01:metallb)]# k ns vote
Context "ubun01" modified.
Active namespace is "vote".
[root@DESKTOP-ARLDN2P example-voting-app (ubun01:vote)]# ls k8s-specifications/
db-deployment.yaml     redis-service.yaml      vote-deployment.yaml
db-service.yaml        result-deployment.yaml  vote-service.yaml
redis-deployment.yaml  result-service.yaml     worker-deployment.yaml
[root@DESKTOP-ARLDN2P example-voting-app (ubun01:vote)]#
[root@DESKTOP-ARLDN2P example-voting-app (ubun01:vote)]# k apply -f k8s-specifications/
deployment.apps/db created
service/db created
deployment.apps/redis created
service/redis created
deployment.apps/result created
service/result created
deployment.apps/vote created
service/vote created
deployment.apps/worker created

- 확인

[root@DESKTOP-ARLDN2P example-voting-app (ubun01:vote)]# k get po
NAME                      READY   STATUS    RESTARTS   AGE
db-74574d66dd-snfrs       1/1     Running   0          65s
redis-6c5fb9c4b7-w4ktq    1/1     Running   0          65s
result-5f99548f7c-8ppxk   1/1     Running   0          65s
vote-5d74dcd7c7-ndj9q     1/1     Running   0          65s
worker-6f5f6cdd56-zx9vb   1/1     Running   0          65s

- 설치된 서비스 변경(기존 서비스는 NodePort여서 LoadBalancer로 바뀌어야 한다)

vi k8s-specifications/vote-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: vote
  name: vote
spec:
  type: LoadBalancer # 수정
  ports:
  - name: "vote-service"
    port: 80 # 수정
    targetPort: 80
      #  nodePort: 31000 #수정
  selector:
    app: vote
k apply -f  k8s-specifications/vote-service.yaml

- 근데 문제가 생겼다. svc에 external-ip가 할당이 안된다.

[root@DESKTOP-ARLDN2P metallb (ubun01:vote)]# k get svc
NAME     TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
db       ClusterIP      10.233.60.40    <none>        5432/TCP         13m
redis    ClusterIP      10.233.3.203    <none>        6379/TCP         13m
result   NodePort       10.233.11.31    <none>        8081:31001/TCP   13m
vote     LoadBalancer   10.233.47.102   <pending>     80:31000/TCP     13m

- 찾아보니 address 관련한 커스텀 리소스가 metallb에서 필요하다

apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
  name: default-address-pool
  namespace: metallb
spec:
  addresses:
  - 172.17.29.70-172.17.29.85
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
  name: default-l2-advertisement
  namespace: metallb


kubectl apply -f metallb-config.yaml
kubectl delete pod -n metallb --all

- 재확인

[root@DESKTOP-ARLDN2P metallb (ubun01:metallb)]# k -n vote get svc
NAME     TYPE           CLUSTER-IP      EXTERNAL-IP    PORT(S)          AGE
db       ClusterIP      10.233.60.40    <none>         5432/TCP         19m
redis    ClusterIP      10.233.3.203    <none>         6379/TCP         19m
result   NodePort       10.233.11.31    <none>         8081:31001/TCP   19m
vote     LoadBalancer   10.233.47.102   172.17.29.70   80:31000/TCP     19m

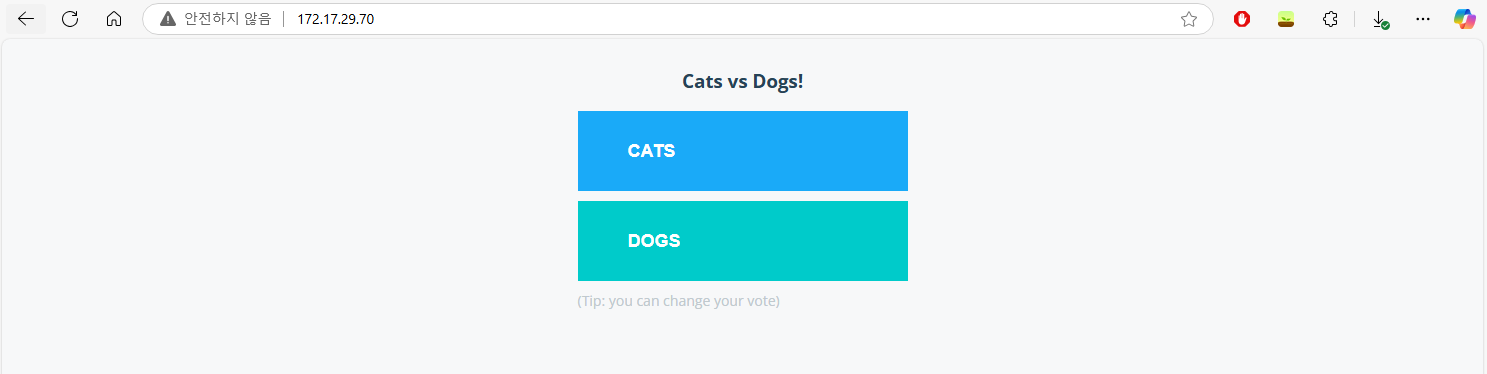

- 그리고 해당 external IP로 들어가면 application이 뜬다.

3. vote application 서버 운영

- 여러 pod가 설치되어 있다. 각 서버들 로그를 보다 편리하게 확인하기 위해 kubetail을 사용한다.

- kubetail 아래와 같이 인자를 주면 해당 인자를 가지고 있는 pod, 어플리케이션의 로그를 보여준다. -n 을 쓸 경우, namespace 기반으로 log 필터링이 진행된다.

[root@DESKTOP-ARLDN2P ~ (ubun01:vote)]# sudo apt -y install kubetail
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following NEW packages will be installed:
  kubetail
0 upgraded, 1 newly installed, 0 to remove and 82 not upgraded.
Need to get 8058 B of archives.
After this operation, 42.0 kB of additional disk space will be used.
Get:1 http://archive.ubuntu.com/ubuntu noble/universe amd64 kubetail all 1.6.18-1 [8058 B]
Fetched 8058 B in 1s (15.0 kB/s)
Selecting previously unselected package kubetail.
(Reading database ... 40804 files and directories currently installed.)
Preparing to unpack .../kubetail_1.6.18-1_all.deb ...
Unpacking kubetail (1.6.18-1) ...
Setting up kubetail (1.6.18-1) ...
Processing triggers for man-db (2.12.0-4build2) ...
[root@DESKTOP-ARLDN2P ~ (ubun01:vote)]# kubetail --version
1.6.18
[root@DESKTOP-ARLDN2P ~ (ubun01:vote)]# k ns metallb
Context "ubun01" modified.
Active namespace is "metallb".
[root@DESKTOP-ARLDN2P ~ (ubun01:metallb)]# kubetail speaker
Will tail 3 logs...
metallb-speaker-f5stm
metallb-speaker-ls9bn
metallb-speaker-m2r5w
[root@DESKTOP-ARLDN2P ~ (ubun01:metallb)]# kubetail -n vote
Will tail 7 logs...
db-74574d66dd-snfrs
redis-6c5fb9c4b7-w4ktq
result-5f99548f7c-8ppxk
vote-5d74dcd7c7-56g29
vote-5d74dcd7c7-jx4w6
vote-5d74dcd7c7-ndj9q
worker-6f5f6cdd56-zx9vb
[db-74574d66dd-snfrs] 2025-02-01 11:11:03.543 UTC [26] LOG:  checkpoint starting: time
[db-74574d66dd-snfrs] 2025-02-01 11:11:04.175 UTC [26] LOG:  checkpoint complete: wrote 7 buffers (0.0%); 0 WAL file(s) added, 0 removed, 0 recycled; write=0.612 s, sync=0.007 s, total=0.633 s; sync files=6, longest=0.003 s, average=0.002 s; distance=1 kB, estimate=1 kB
[vote-5d74dcd7c7-56g29] [2025-02-01 11:11:11,537] INFO in app: Received vote for b
[vote-5d74dcd7c7-56g29] [2025-02-01 11:11:11 +0000] [9] [INFO] Received vote for b
[vote-5d74dcd7c7-56g29] 10.233.109.128 - - [01/Feb/2025:11:11:11 +0000] "POST / HTTP/1.1" 200 1697 "http://172.17.29.70/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/132.0.0.0 Safari/537.36 Edg/132.0.0.0"
[vote-5d74dcd7c7-jx4w6] 10.233.109.128 - - [01/Feb/2025:11:11:11 +0000] "GET /static/stylesheets/style.css HTTP/1.1" 304 0 "http://172.17.29.70/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/132.0.0.0 Safari/537.36 Edg/132.0.0.0"
[worker-6f5f6cdd56-zx9vb] Processing vote for 'b' by '21b29626aa9d71a'
[db-74574d66dd-snfrs] 2025-02-01 11:11:11.625 UTC [37] ERROR:  duplicate key value violates unique constraint "votes_id_key"
[db-74574d66dd-snfrs] 2025-02-01 11:11:11.625 UTC [37] DETAIL:  Key (id)=(21b29626aa9d71a) already exists.
[db-74574d66dd-snfrs] 2025-02-01 11:11:11.625 UTC [37] STATEMENT:  INSERT INTO votes (id, vote) VALUES ($1, $2)

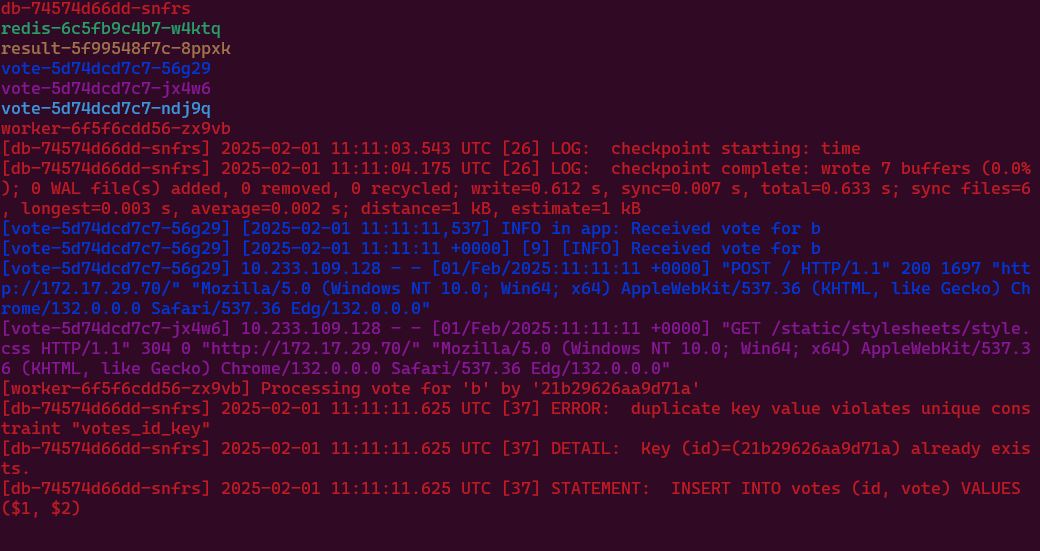

- 또한 색깔별로 다양한 로그들을 보여주기에 기존 kubectl logs 보다 편리하다

4. 고가용성 테스트

1) k6를 이용한 부하 테스트

- k6 : CLI 환경, 자동화 스크립트 기반의 부하 테스트 제공

- k6 설치

sudo gpg -k
sudo gpg --no-default-keyring --keyring /usr/share/keyrings/k6-archive-keyring.gpg --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys C5AD17C747E3415A3642D57D77C6C491D6AC1D69
echo "deb [signed-by=/usr/share/keyrings/k6-archive-keyring.gpg] https://dl.k6.io/deb stable main" | sudo tee /etc/apt/sources.list.d/k6.list
sudo apt-get update
sudo apt-get install k6

- 사용할 스크립트(k6를 위해선 스크립트 필요

k6-http.js
import http from 'k6/http';
import { check, group, sleep } from 'k6';

export let options = {
  stages: [
    { duration: '1m', target: 1000 }, // simulate ramp-up of traffic from 1 to 100 users over 5 minutes.
    { duration: '2m', target: 1000 }, // stay at 100 users for 10 minutes
    { duration: '1m', target: 0 }, // ramp-down to 0 users
  ]
};

export default function () {
  http.get('172.17.29.70');
  sleep(1);
}


[root@DESKTOP-ARLDN2P ~ (ubun01:metallb)]# vi k6-http.js
[root@DESKTOP-ARLDN2P ~ (ubun01:metallb)]# k6 run k6-http.js

- 총 4분에 걸친 부하테스트를 실행한다. ( 실 운영환경에선 통상 30분 정도 수행). 1분 준비, 2분 실행, 1분 종료 순서로, 1000개의 트랜잭션 부하를 생성

- http.get.IP http 부하를 실행할 IP를 LB 서비스의 External-IP로 지정
